Product Description

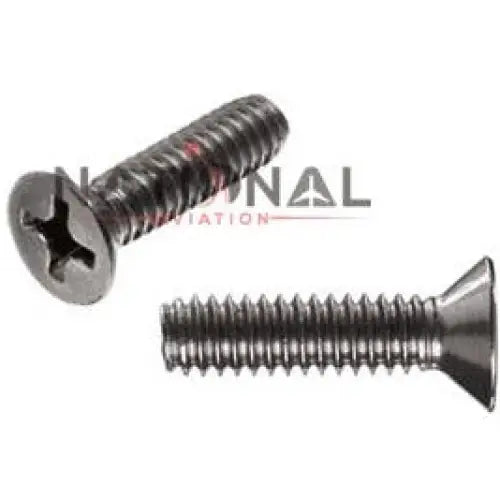

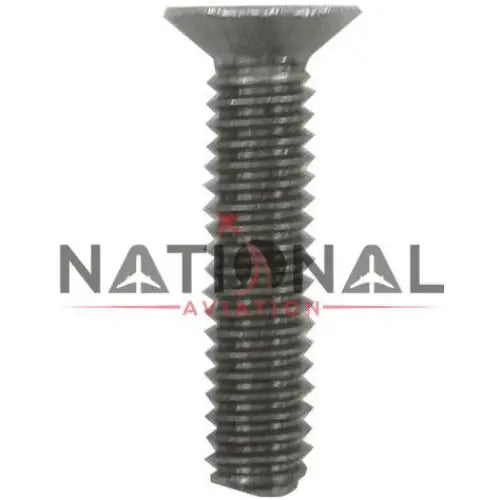

MS24693C52 is a stainless steel, non-structural machine screw used for fastening applications requiring an 8-32 thread and a 3/4 inch long, 100 degree countersunk flat head.

0 1. Overview

This screw belongs to the MS24693C series of machine screws. The series uses stainless steel construction. The head style is a 100 degree countersunk flat head intended for flush installation in compatible countersinks. The screw has an 8-32 unified thread and a nominal length of 3/4 inch, providing a fine-thread option for thin sheet or light-structure attachments that do not require structural bolt strength.

Within the MS24693 and MS24693C machine screw family, the screws are identified as non-structural hardware. The MS24693C designation distinguishes the stainless steel version from cadmium plated carbon steel variants in the same series. The MS24693C52 part number specifically identifies the combination of 8-32 thread size with 3/4 inch length in this stainless steel, 100 degree countersunk configuration.

0 2. Key Features

  • Stainless steel MS24693C series machine screw
  • 100 degree countersunk flat head configuration
  • 8-32 unified thread size
  • Nominal length of 3/4 inch
  • Non-structural fastener for general aircraft use
0 3. Specifications

Part Number: MS24693C52
Series: MS24693C machine screws
Material: Stainless steel
Head Type: 100° countersunk flat head
Thread Size: 8-32
Nominal Length: 3/4 in
Fastener Type: Non-structural machine screw

FAQs

01. What thread size does the MS24693C52 screw use?

The MS24693C52 screw uses an 8-32 unified thread size.

02. What is the length of the MS24693C52 screw?

The MS24693C52 screw has a nominal length of 3/4 inch.

03. What material is the MS24693C52 screw made from?

The MS24693C52 screw is made from stainless steel.

04. What head style does the MS24693C52 screw have?

The MS24693C52 screw has a 100 degree countersunk flat head.

05. Is the MS24693C52 screw intended for structural applications?

The MS24693C52 screw is classified as a non-structural machine screw.
