Product Description

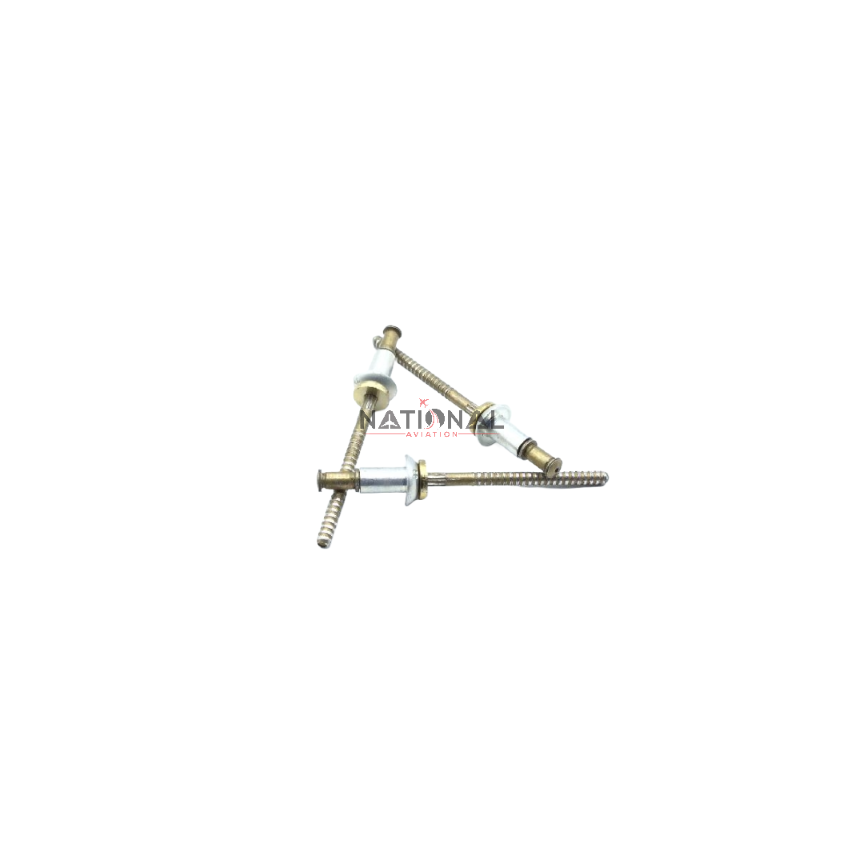

CR3213-4-02 is a CherryMAX universal-head blind rivet used to create strong, permanent joints in structures where only one side of the workpiece is accessible. It is applied in aircraft and similar assemblies that require secure fastening of sheet materials with controlled grip in a 0.126 inch nominal diameter.

0 1. Overview

This CherryMAX fastener belongs to the CR3213 nominal-diameter rivet series and is supplied as a universal-head blind rivet in aluminum with a nominal 1/8 inch diameter. The grip range is specified from 0.063 inch to 0.125 inch, allowing installation across a defined stack thickness without changing rivet size. The fastener is packaged in units of 100 pieces per pack for production and maintenance use. The part is associated with NSN 5320-01-151-1061 and is classified under export control classification EAR99 with Schedule B code 7616.10.3000. Country of origin is listed as the United States.

0 2. Key Features

  • Universal-head blind rivet in the CR3213 CherryMAX series
  • Nominal diameter specified as 1/8 inch for the shank
  • Grip range defined from 0.063 inch to 0.125 inch
  • Aluminum construction identified for the rivet body
  • Supplied in packaging of 100 pieces per pack
  • Associated with NSN 5320-01-151-1061
  • Classified with export code EAR99 and Schedule B 7616.10.3000
  • Country of origin identified as United States
0 3. Specifications

Part Number: CR3213-4-02
Series: CR3213
Rivet Type: Universal-head blind rivet
Nominal Diameter: 1/8 in (approx. 0.126 in)
Grip Range: 0.063 in to 0.125 in
Material: Aluminum
Pack Quantity: 100 pieces
NSN: 5320-01-151-1061
Country of Origin: United States
Export Classification: EAR99
Schedule B Code: 7616.10.3000

FAQs

01. What grip range does the CR3213-4-02 rivet cover?

CR3213-4-02 covers a grip range from 0.063 inch to 0.125 inch.

02. What is the nominal diameter of the CR3213-4-02 blind rivet?

The nominal diameter of the CR3213-4-02 blind rivet is 1/8 inch, approximately 0.126 inch.

03. How many CR3213-4-02 rivets are included in one pack?

One pack of CR3213-4-02 rivets contains 100 pieces.

04. What material is used for the CR3213-4-02 rivet body?

The CR3213-4-02 rivet body is made from aluminum.

05. Which NSN is associated with the CR3213-4-02 rivet?

The CR3213-4-02 rivet is associated with NSN 5320-01-151-1061.
