Product Description

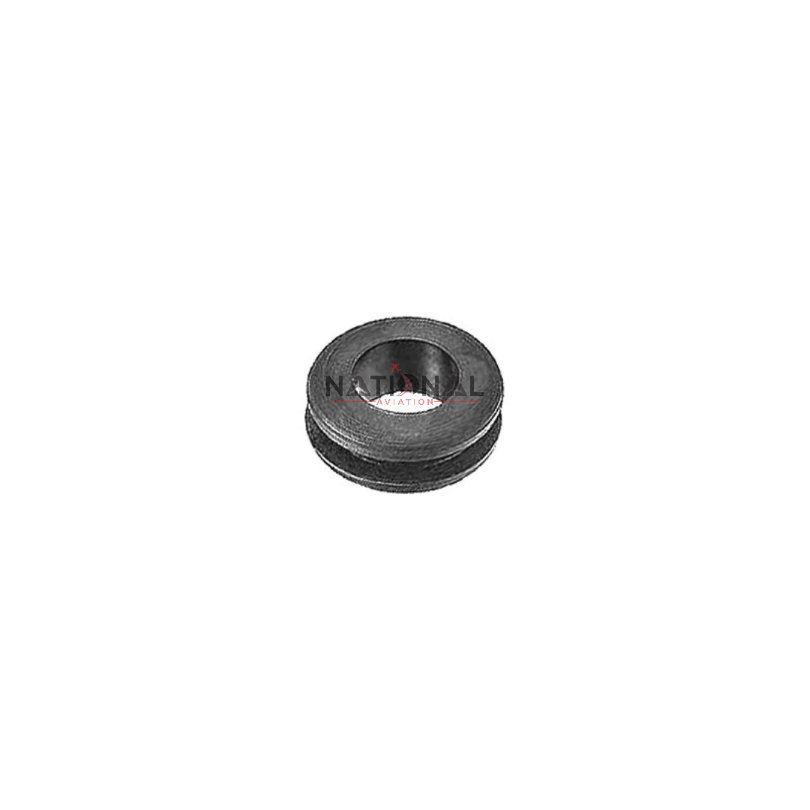

Part number 4434 is an SBR rubber multi-purpose grommet used to provide a protected pass-through for cables, wires, or tubing through panels by isolating edges and reducing wear at the opening.

0 1. Overview

This grommet is formed from styrene butadiene rubber with a hardness of 60 durometer, giving a resilient yet durable interface between panel edges and passing conductors. The design provides a 3/4 inch bore diameter to accommodate cables or tubing, with an outer diameter of 1-3/8 inches for seating in the panel hole. The groove diameter is 1-1/16 inches and the groove width is 1/16 inch, defining the panel thickness engagement. Overall height is 3/8 inch, establishing the installed profile above and below the mounting surface. The product is supplied in quantities of 25 pieces per package and is manufactured in Vietnam.

0 2. Key Features

  • Multi-purpose grommet formed from SBR rubber
  • 3/4 inch bore diameter for cable or tubing pass-through
  • 1-3/8 inch outer diameter for panel mounting
  • 60 durometer hardness for resilience and wear resistance
  • Groove geometry suited for panel edge engagement
  • Supplied in packages of 25 pieces
  • Manufactured in Vietnam
0 3. Specifications

Part Number: 4434
Material: SBR (Styrene Butadiene Rubber)
Hardness: 60 durometer
Bore (Hole) Diameter: 3/4 in
Outer Diameter: 1-3/8 in
Groove Diameter: 1-1/16 in
Groove Width: 1/16 in
Overall Height: 3/8 in
Quantity per Package: 25
Country of Origin: Vietnam

FAQs

01. What material is used for the 4434 grommet?

The 4434 grommet is made from SBR (styrene butadiene rubber).

02. What is the bore diameter of the 4434 grommet?

The 4434 grommet has a bore diameter of 3/4 inch.

03. How many 4434 grommets are supplied per package?

The 4434 grommet is supplied in a quantity of 25 pieces per package.

04. What is the outer diameter of the 4434 grommet?

The outer diameter of the 4434 grommet is 1-3/8 inches.

05. What hardness rating does the 4434 SBR grommet have?

The 4434 SBR grommet has a hardness of 60 durometer.
