Product Description

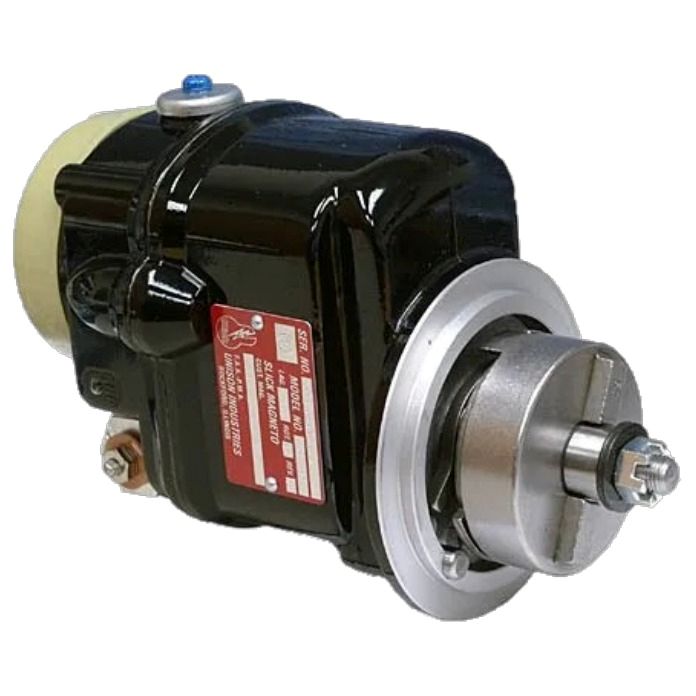

This aircraft ignition component is a Slick 4371 series magneto configured for four‑cylinder engines and used to provide spark for engine ignition. It is designed for left‑hand rotation with an impulse feature for installation on compatible Lycoming engines in the O‑235, O‑320, O‑360, IO‑320E1B, IO‑320E2B, AEIO‑320E1B, AEIO‑320E2B, AEIO‑360B1C6, and H1A families, where it serves as one of the primary engine magnetos.

0 1. Overview

The 4371 configuration belongs to the 4300 series of aircraft magnetos and serves as a direct replacement for earlier 4200 series units in the same application range, while incorporating an updated case and bearings. In this configuration the magneto includes an impulse mechanism and uses a 3/4‑20 spark plug connector interface matched to the intended Lycoming engine installations. The magneto family is constructed as a lightweight design at approximately 3‑3/4 pounds, reducing mass compared to older ignition units in the same role and maintaining a rebuildable design for continued service. Within its supported applications the 4371 model is paired with the M2508 harness reference for a complete ignition system match on the specified Lycoming engine list.

0 2. Key Features

  • Four‑cylinder aircraft magneto configuration
  • Left‑hand rotation design for compatible engine installations
  • Equipped with an impulse mechanism for the specified rotation
  • Applies to Lycoming O‑235, O‑320, O‑360, IO‑320E1B, IO‑320E2B, AEIO‑320E1B, AEIO‑320E2B, AEIO‑360B1C6, and H1A engines
  • Uses 3/4‑20 style spark plug connector interface
  • Part of the 4300 series that replaces earlier 4200 series units
0 3. Specifications

Part number: 4371-OH
Magneto family: 4300 series
Model designation within family: 4371
Engine compatibility: Lycoming O‑235, O‑290***, O‑320, O‑360, IO‑320E1B, IO‑320E2B, AEIO‑320E1B, AEIO‑320E2B, AEIO‑360B1C6, H1A
Cylinder count: 4
Rotation: Left‑hand
Impulse: With impulse
Spark plug connector size: 3/4‑20
Approximate unit weight: 3‑3/4 lb
Harness reference for applications: M2508
Series relationship: 4300 series serves as direct replacement for 4200 series magnetos

FAQs

01. For which engines is the 4371 configuration intended?

The 4371 configuration is intended for Lycoming O‑235, O‑290***, O‑320, O‑360, IO‑320E1B, IO‑320E2B, AEIO‑320E1B, AEIO‑320E2B, AEIO‑360B1C6, and H1A engines.

02. What rotation does the 4371 magneto use?

The 4371 magneto uses left‑hand rotation.

03. Does the 4371 configuration include an impulse mechanism?

The 4371 configuration is supplied with an impulse mechanism.

04. What spark plug connector size is associated with the 4371 magneto applications?

The 4371 magneto applications use a 3/4‑20 spark plug connector size.

05. How does the 4300 series, including the 4371, relate to earlier magneto series?

The 4300 series, including the 4371, serves as a direct replacement for previous 4200 series magnetos and includes an improved case and new bearings.
