36160

by National Aviation

The 36160 PIDG ring tongue terminal is designed for a screw size 10 stud.

$0.70
Shipping calculated at checkout.
Ready to Ship
0 in stock - $0.70
Ships within 48 hours
Loading availability...

Pickup currently unavailable at National Aviation, Inc.

Free Shipping for orders over $350

Free standard shipping on all orders over $350 to the United States and Canada. Expedited shipping options are available at checkout for an additional cost.

Orders under $350 will show applicable shipping costs during checkout. Most orders ship within 1-2 business days.

We offer refund, return, and exchange options within 30 days of your purchase for eligible items. Products must be unused and in original packaging. We do not accept refund, return, or exchange requests after 30 days.

For complete details, visit our Shipping Policy and Returns & Refunds Policy.

FAA Approved

Our aviation parts and pilot gear meet FAA standards, giving you confidence and reliability in every flight.

Secure payments


Shop with confidence using our secure, encrypted checkout to protect your personal and payment information.

Fast Order Processing


Orders are processed the same business day, ensuring your parts and pilot gear reach you without delay.

Product Description

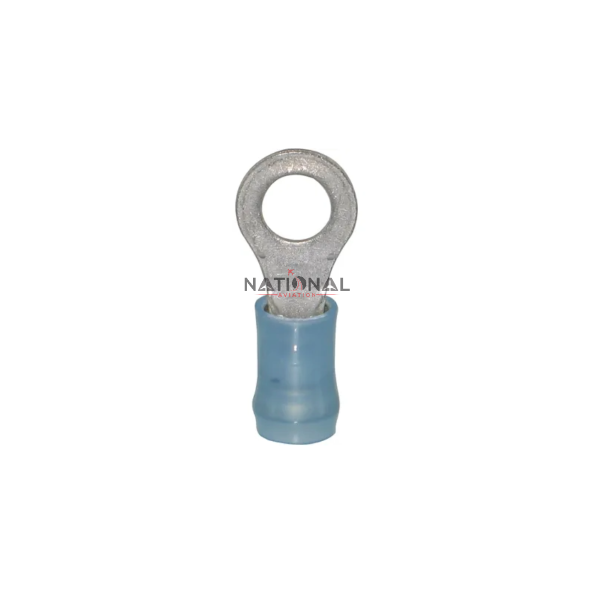

This insulated PIDG ring tongue terminal is built for 16–14 AWG wire and a #10 stud interface, providing a crimped ring connection for electrical conductors in aircraft and other wiring systems.

0 1. Overview

The 36160 terminal belongs to a nylon-insulated PIDG series that uses a tin plated copper body along with a tin plated copper wire support sleeve to reinforce the conductor under the crimp. A color-coded insulation sleeve surrounds the barrel to provide strain relief and gauge identification for the 16–14 AWG range. The tongue is formed as a ring sized for a screw size 10 stud, matching the series table definition for this part. The structure supports use with compatible crimp tooling intended for insulated PIDG ring tongue terminals in control and power wiring applications where a closed ring connection to the stud is required.

0 2. Key Features

  • Ring tongue termination designed for screw size 10 studs
  • Supports 16–14 AWG conductors
  • Insulated PIDG style construction
  • Tin plated copper body for the conductive path
  • Tin plated copper wire support sleeve under the insulation
  • Color-coded insulation sleeve suited to the 16–14 AWG range
0 3. Specifications

Part Number: 36160
Wire Size Range: 16–14 AWG
Stud Size: 10 (screw size)
Body Material: Tin plated copper
Wire Support Sleeve Material: Tin plated copper
Insulation: Color-coded nylon PIDG style

FAQs

01. What wire size range does part 36160 accept?

Part 36160 accepts 16–14 AWG wire.

02. What stud size is the 36160 PIDG ring tongue terminal designed for?

The 36160 PIDG ring tongue terminal is designed for a screw size 10 stud.

03. What construction style is used for the 36160 terminal?

The 36160 terminal uses an insulated PIDG construction with a tin plated copper body, a tin plated copper wire support sleeve, and a color-coded insulation sleeve.

04. What termination style does part 36160 provide?

Part 36160 provides a ring tongue termination style for attachment to a stud or screw.
