Product Description

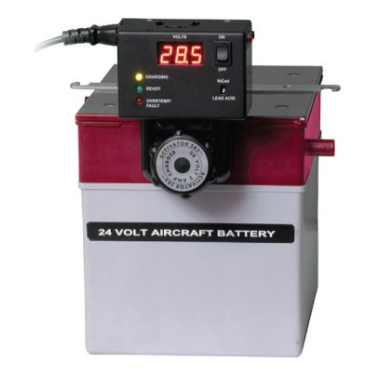

This unit is a direct‑connect, fully automatic 24‑volt charger and power supply for charging military and aviation batteries without separate charge cables. It delivers controlled DC output for bringing batteries from zero to full capacity and for maintaining them on standby without using trickle charging. The design supports reliable charging and power delivery for aircraft electrical systems where a dedicated 24‑volt source is required.

0 1. Overview

The Activator 282 operates from a wide‑range 90 to 260 VAC input and provides 8‑amp pulses with a 2.5‑amp charge rate on the DC side. A microprocessor‑controlled, multistep charge algorithm manages the charging sequence, including a conditioning mode that top‑charges nickel‑cadmium batteries and rejuvenates lead‑acid batteries. Short‑cell and over‑temperature protection and non‑responsive battery indication are integrated into the control logic.

During operation, 8‑amp pulse output is used to bring deeply discharged batteries up from zero volts, after which the charger transitions through its programmed stages. The unit functions as a standby maintenance device that charges only when required, avoiding gassing, heat buildup, or other effects associated with trickle or float charging.

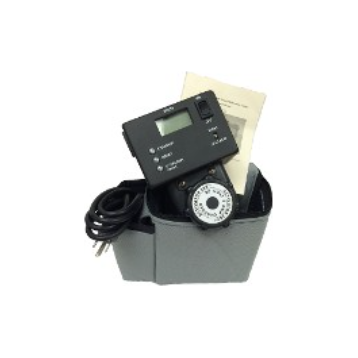

A digital voltmeter on the front panel continuously displays battery voltage during both charging and standby operation. The unit housing measures 5.5 inches high by 4.5 inches wide by 3.5 inches deep and has a weight of 1.5 pounds. Each charger is supplied with a padded carrying case, a technical manual, and an IEC line cord.

0 2. Key Features

  • Direct‑connect configuration eliminates separate charge cables
  • Fully automatic charging control for 24‑volt military and aviation batteries
  • Operates as a standby maintenance charger without using trickle charge
  • Microprocessor‑controlled, multistep charge algorithm
  • 8‑amp pulse output to recover deeply discharged batteries from zero volts
  • Conditioning mode for nickel‑cadmium and lead‑acid batteries
  • Integrated short‑cell and over‑temperature protection
  • Non‑responsive battery indication during charging
  • Digital voltmeter display of battery voltage in charge and standby
  • Worldwide 90–260 VAC input capability
  • Supplied with padded carrying case, technical manual, and IEC line cord
0 3. Specifications

Part Number: Activator 282
Alternate Part Numbers: 282, 282-300
Battery Type Compatibility: 24 V military and aviation batteries
AC Input Voltage Range: 90 to 260 VAC
DC Output Pulse Current: 8 A
DC Output Charge Current: 2.5 A
Operating Function: Fully automatic charger and standby maintenance unit
Protection Features: Short‑cell protection, over‑temperature protection, non‑responsive battery indication
Indication: Digital voltmeter displaying battery voltage
Dimensions: 5.5 in H × 4.5 in W × 3.5 in D
Weight: 1.5 lb
Included Items: Padded carrying case, technical manual, IEC line cord
NSN: 6130-01-465-2674

FAQs

01. What type of batteries does the Activator 282 support?

The Activator 282 supports 24‑volt military and aviation batteries of any rating.

02. How much current does the Activator 282 deliver during normal charging?

The Activator 282 provides a 2.5‑amp DC charge current.

03. What feature does the Activator 282 use to recover deeply discharged batteries?

The Activator 282 uses 8‑amp DC pulses to bring a deeply discharged battery up from zero volts.

04. What protective functions are built into the Activator 282?

The Activator 282 incorporates short‑cell protection, over‑temperature protection, and non‑responsive battery indication.

05. What items are supplied with each Activator 282 unit?

Each Activator 282 is supplied with a padded carrying case, a technical manual, and an IEC line cord.
