Product Description

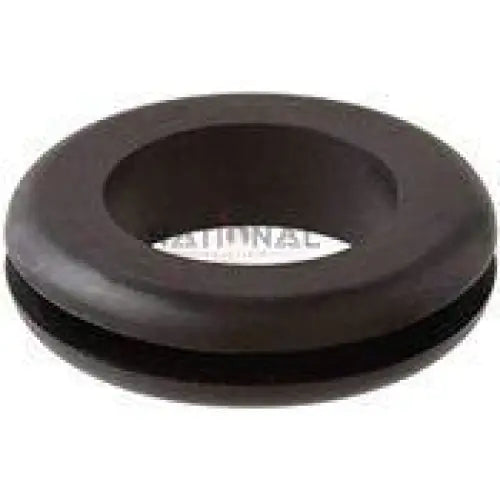

Rubber panel grommet used to secure and protect wires and cables as they pass through holes in panels or similar structures within the 2572 size family.

0 1. Overview

This grommet is manufactured from SBR (styrene butadiene rubber) with a nominal 60 Shore A durometer. The black elastomer body seats in a panel or plate with a hole diameter of 1.375 inches and a plate thickness of 0.250 inch. The part provides a 1.000 inch inner diameter opening for the routed conductor or bundle, with an outer diameter of approximately 1.750 inches, a groove diameter of 1.375 inches, a groove width of 0.250 inch, and an overall thickness of 0.625 inch. The material selection provides abrasion resistance for general industrial service.

0 2. Key Features

  • Standard rubber grommet in the 2572 dash size for general use applications
  • Constructed from SBR elastomer with 60 Shore A nominal hardness
  • Black color for use in general industrial environments
  • Designed for installation in a 1.375 inch panel hole with 0.250 inch panel thickness
  • Provides a 1.000 inch inner diameter opening for wire or cable
  • Outer diameter of approximately 1.750 inches with 0.625 inch overall thickness
0 3. Specifications

Part Number: 2572
Material: SBR (Styrene Butadiene Rubber)
Color: Black
Durometer: 60 Shore A nominal (+/- 5)
Panel Hole Diameter: 1.375 in (34.9 mm)
Panel Thickness: 0.250 in (6.4 mm)
Inner Diameter: 1.000 in (25.4 mm)
Outer Diameter: 1.750 in (44.5 mm)
Groove Diameter: 1.375 in (34.9 mm)
Groove Width: 0.250 in (6.4 mm)
Overall Thickness: 0.625 in (15.9 mm)
Part Category: Rubber grommet

FAQs

01. What material is the 2572 rubber grommet made from?

The 2572 rubber grommet is made from SBR, or styrene butadiene rubber.

02. What is the inner diameter of the 2572 grommet?

The inner diameter of the 2572 grommet is 1.000 inch.

03. What panel hole size is required for installing the 2572 grommet?

The 2572 grommet is installed in a panel hole with a diameter of 1.375 inches.

04. What panel thickness is the 2572 grommet designed to fit?

The 2572 grommet is designed for use in panels with a thickness of 0.250 inch.

05. What is the durometer hardness of the 2572 grommet?

The durometer hardness of the 2572 grommet is 60 Shore A nominal.
