Product Description

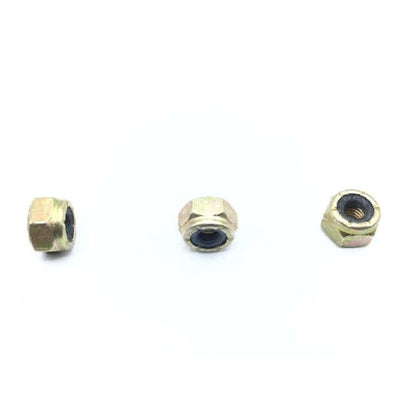

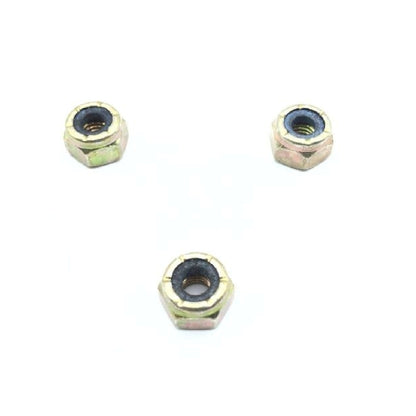

MS21044N3 is a self-locking hex nut with a nylon insert that provides resistance to loosening in bolted joints using 10-32 threaded fasteners, supporting secure connections in aircraft engine and hardware assemblies subjected to vibration.

0 1. Overview

This nut belongs to the MS21044 series of hexagon self-locking nuts and uses a nylon locking element to create prevailing torque on the mating screw or bolt threads for secure retention under service loads. The component is manufactured from stainless steel and has a gold-colored finish. It is configured for a 10-32 thread size and is supplied as an individual hardware item for use in aircraft applications where a self-locking feature with a nylon insert is required. Dimensional data specify a nut height range of 0.281 to 0.208 inch and a width across flats from 0.376 to 0.367 inch. The nut carries an NSN of 5310-00-877-5797 and is classified under ECCN EAR99 with Schedule B code 7318.16.0000. The part is produced in the United States and is offered as an OEM engine component for specific aircraft engines.

0 2. Key Features

  • Hexagon self-locking nut with prevailing torque nylon insert
  • Compatible with 10-32 threaded bolts and screws
  • Constructed from stainless steel with a gold-colored finish
  • Configured as an OEM component for certain aircraft engines
  • Supplied as an individual nut for use in aviation hardware installations
  • Carries NSN 5310-00-877-5797 for identification in logistics systems
  • Manufactured in the United States
0 3. Specifications

Part number: MS21044N3
Series: MS21044
Thread size: 10-32
Form: hexagon self-locking nut with nylon insert
Material: stainless steel
Finish/color: gold
Height: 0.281 to 0.208 in
Width across flats: 0.376 to 0.367 in
National Stock Number (NSN): 5310-00-877-5797
Country of origin: United States
Export control classification number (ECCN): EAR99
Schedule B code: 7318.16.0000
Approximate item weight: 0.006 lb

FAQs

01. What thread size does the MS21044N3 nut fit?

The MS21044N3 nut fits 10-32 threaded fasteners.

02. What locking feature does the MS21044N3 nut use?

The MS21044N3 nut uses a nylon insert to provide the self-locking function.

03. What material is the MS21044N3 self-locking nut made from?

The MS21044N3 self-locking nut is made from stainless steel.

04. What is the NSN for the MS21044N3 nut?

The MS21044N3 nut has NSN 5310-00-877-5797.

05. What are the approximate across-flats dimensions of the MS21044N3 nut?

The MS21044N3 nut has a width across flats between 0.376 inch and 0.367 inch.
