Product Description

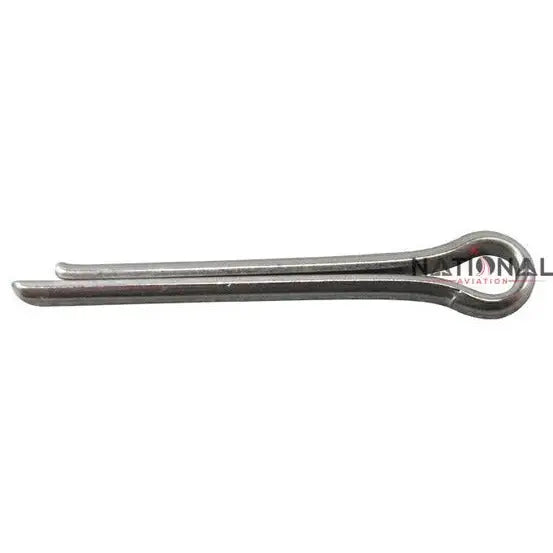

MS24665-151 is a corrosion-resistant stainless-steel split cotter pin used to secure fasteners and mechanical joints in aerospace and other demanding applications where reliable retention and resistance to environmental degradation are required.

0 1. Overview

This cotter pin belongs to the MS24665 series and is identified with the aeronautical standard number AN381-2-8. It is manufactured from stainless steel, with material composition specified as steel 302 or steel 304, and is provided in a gold color finish. The nominal diameter is 1/16 inch and the length is 1/2 inch, with a diameter tolerance range of 0.056 to 0.060 inch and an underloop length from 0.438 to 0.625 inch. The pin uses an extended prong square cut point type and has a hardness rating between 65.0 and 78.0 on the Rockwell Superficial 15-N scale. Packaging is supplied as a pack of 100 pieces. The item has NSN 5315-01-584-9253 and NATO stock number 5315-00-815-1405, with additional references Pilatus part numbers 940.17.02.330 and 960.10.01.363. Country of origin is the United States. Export and customs classifications include ECCN 9A991.d and Schedule B code 7318.24.0000.

0 2. Key Features

  • MS24665 series corrosion-resistant stainless-steel cotter pin
  • Associated aeronautical standard reference AN381-2-8
  • Stainless-steel material in composition 302 or 304
  • 1/16 inch nominal diameter and 1/2 inch length
  • Extended prong square cut point configuration
  • Rockwell Superficial 15-N hardness between 65.0 and 78.0
  • Gold color finish on stainless-steel construction
  • Packaged in quantities of 100 pieces
  • Country of origin specified as United States
  • Assigned NSN 5315-01-584-9253 and NATO stock number 5315-00-815-1405
  • Export classification ECCN 9A991.d and Schedule B 7318.24.0000
0 3. Specifications

Part Number: MS24665-151
Series: MS24665
Aeronautical Standard Reference: AN381-2-8
Alternate Part Numbers: AN381-2-8
Material: Stainless steel, composition 302 or 304
Color: Gold
Nominal Diameter: 1/16 in
Diameter Range: 0.056 in to 0.060 in
Length: 1/2 in
Underloop Length: 0.438 in to 0.625 in
Point Type: Extended prong square cut
Hardness: 65.0 to 78.0 Rockwell Superficial 15-N
Country of Origin: United States
Pack Quantity: 100 pieces
NSN: 5315-01-584-9253
NATO Stock Number: 5315-00-815-1405
Pilatus Part Numbers: 940.17.02.330; 960.10.01.363
ECCN: 9A991.d
Schedule B Code: 7318.24.0000

FAQs

01. What are the dimensions of the MS24665-151 cotter pin?

The MS24665-151 cotter pin has a nominal diameter of 1/16 inch and a length of 1/2 inch, with a diameter range from 0.056 to 0.060 inch and an underloop length from 0.438 to 0.625 inch.

02. What material is used for the MS24665-151 cotter pin?

The MS24665-151 cotter pin is made from stainless steel in composition 302 or 304.

03. Which aeronautical standard corresponds to MS24665-151?

MS24665-151 corresponds to aeronautical standard number AN381-2-8.

04. How is the MS24665-151 cotter pin packaged?

The MS24665-151 cotter pin is packaged in a pack containing 100 pieces.

05. What are the reference identification numbers associated with MS24665-151?

Reference identification numbers for MS24665-151 include NSN 5315-01-584-9253, NATO stock number 5315-00-815-1405, and Pilatus part numbers 940.17.02.330 and 960.10.01.363.
