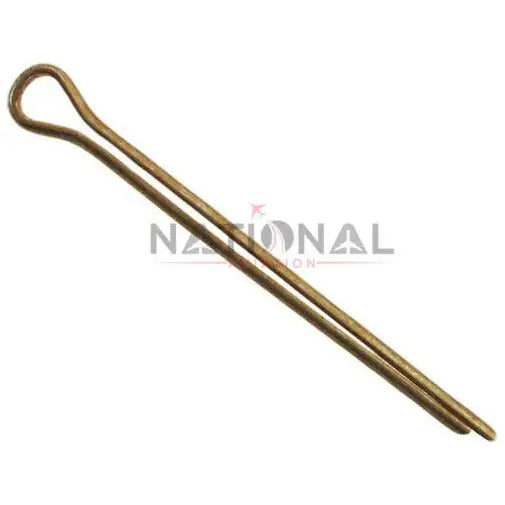

MS24665-132

This cotter pin is part of the MS24665 series and corresponds to Aeronautical Standard part number AN380-2-2. The pin is manufactured from steel with a cadmium surface treatment and a chromate finish over the cadmium. It has a nominal underloop length of 0.500 inches and a diameter range from 0.056 inches minimum to 0.060 inches maximum, with an overall listed size of 1/16 inch by 1/2 inch. The design uses an extended prong square cut point type.

The item carries National Stock Number 5315-00-839-2325 and shares this value as the NATO stock number. Export control information identifies ECCN 9A991.d, and the Schedule B classification is 7318.24.0000. The pin is produced to the MS24665 series specification for cotter pins and is supplied in bulk packages such as packs of 200 pieces. Country of origin information identifies manufacture in the United States.

• MS24665 series steel cotter pin
• Equivalent aeronautical standard part number AN380-2-2
• Steel construction with cadmium and chromate surface treatment
• Diameter between 0.056 in and 0.060 in
• Nominal underloop length of 0.500 in
• Overall size designation 1/16 in by 1/2 in
• Extended prong square cut point configuration
• Assigned NSN and NATO stock number 5315-00-839-2325
• Export classification ECCN 9A991.d
• Schedule B code 7318.24.0000
• Manufactured in the United States

Part number: MS24665-132
Series: MS24665
Aeronautical standard reference: AN380-2-2
Material: Steel
Surface treatment: Cadmium overall with chromate overall
Diameter range: 0.056 in minimum, 0.060 in maximum
Nominal size: 1/16 in diameter by 1/2 in length
Underloop length: 0.500 in nominal
Point type: Extended prong square cut
Color: Gold
Color family: Gold
NSN: 5315-00-839-2325
NATO stock number: 5315-00-839-2325
ECCN: 9A991.d
Schedule B code: 7318.24.0000
Country of origin: United States
Pack quantity example: 200 pieces per pack
