In stock

32446

Name: 32446
Brand: TE Connectivity
SKU: NAT-08UIY1PZ
Price: 0.83 USD
Availability: InStock

by TE Connectivity

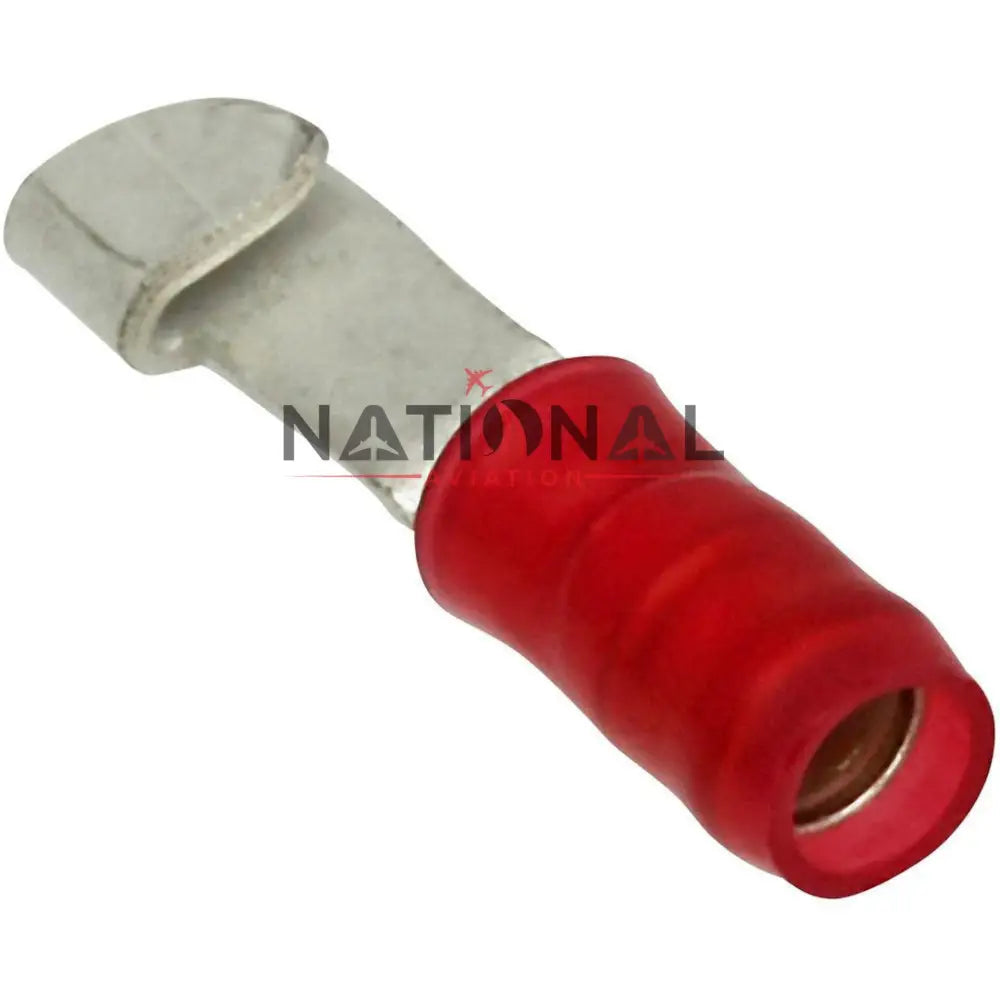

The 32446 splice terminal has a copper body with a tin finish and a red nylon insulation sleeve.

$0.83

Shipping calculated at checkout.

Product variants

Ready to Ship

23 in stock - $0.83

Ships within 48 hours

Loading availability...

Pickup available at National Aviation, Inc.

Usually ready in 1 hour

Free Shipping for orders over $350

Free standard shipping on all orders over $350 to the United States and Canada. Expedited shipping options are available at checkout for an additional cost.

Orders under $350 will show applicable shipping costs during checkout. Most orders ship within 1-2 business days.

We offer refund, return, and exchange options within 30 days of your purchase for eligible items. Products must be unused and in original packaging. We do not accept refund, return, or exchange requests after 30 days.

For complete details, visit our Shipping Policy and Returns & Refunds Policy.

FAA Approved

Our aviation parts and pilot gear meet FAA standards, giving you confidence and reliability in every flight.

Secure payments

Shop with confidence using our secure, encrypted checkout to protect your personal and payment information.

Fast Order Processing

Orders are processed the same business day, ensuring your parts and pilot gear reach you without delay.

32446

$0.83

Product Description

This item is a red, pre-insulated knife disconnect splice terminal for joining or disconnecting 22–16 AWG electrical wires in aircraft wiring harnesses and related installations.

0 1. Overview

The 32446 terminal uses a Pre-Insulated Diamond Grip body style with an unsealed knife disconnect splice configuration. The conductive body is manufactured from copper with a tin finish for electrical contact performance, and it is covered by a red nylon insulation sleeve that provides insulation support. The terminal is specified for wire sizes from 22 to 16 AWG, corresponding to a conductor cross-sectional range of 0.30 to 1.40 mm² and a wire size range of 509 to 3,260 CMA. The insulation diameter is limited to a maximum of 3.56 mm, or 0.140 inches, for proper fit in the sleeve. The design is described as RoHS compliant and ELV compliant, with a compliance history that has always met these requirements, and it is categorized as not relevant for lead free solder processes. The terminal is associated with the AMP brand and carries the national stock number 5940-00-236-1573. Country of origin is identified as the United States, and trade classification information includes ECCN 9A991.d and Schedule B code 8536.90.4000. Packaging is supplied as loose pieces in a pack quantity of 50.

0 2. Key Features

Knife disconnect splice terminal for 22–16 AWG wires
Pre-Insulated Diamond Grip body style with insulation support
Copper body with tin finish for the conductive element
Red nylon insulation sleeve with 3.56 mm (0.140 in) maximum insulation diameter
Wire size range of 0.30–1.40 mm² or 509–3,260 CMA
RoHS compliant and ELV compliant construction
Associated with AMP branded terminals
Country of origin identified as United States
Packaged in quantities of 50 terminals per pack
Assigned national stock number 5940-00-236-1573
Classified under ECCN 9A991.d and Schedule B code 8536.90.4000

0 3. Specifications

Part Number: 32446
Product Type: Splice terminal
Splice Type: Knife disconnect
Body Style: Pre-Insulated Diamond Grip (PIDG)
Wire Range: 22–16 AWG
Wire Range (Metric): 0.30–1.40 mm²
Wire Size Range (CMA): 509–3,260 CMA
Insulation: Yes
Insulation Sleeve Material: Nylon
Insulation Diameter (Max): 3.56 mm (0.140 in)
Conductor Material: Copper
Finish: Tin
Color: Red
Color Family: Red
Government/Industry Qualification: No
RoHS/ELV Compliance: RoHS compliant, ELV compliant
RoHS/ELV Compliance History: Always RoHS compliant
Lead Free Solder Processes: Not relevant for lead free process
Brand: AMP
Country of Origin: United States
NSN: 5940-00-236-1573
ECCN: 9A991.d
Schedule B Code: 8536.90.4000
Packaging Method: Loose piece
Pack Quantity: 50 terminals per pack

FAQs

01. What wire sizes are compatible with the 32446 knife disconnect splice terminal?

The 32446 knife disconnect splice terminal is compatible with wire sizes from 22 to 16 AWG, corresponding to 0.30–1.40 mm² and 509–3,260 CMA.

02. What materials are used in the construction of the 32446 splice terminal?

The 32446 splice terminal has a copper body with a tin finish and a red nylon insulation sleeve.

03. What is the maximum insulation diameter that fits the 32446 terminal?

The maximum insulation diameter that fits the 32446 terminal is 3.56 mm, or 0.140 inches.

04. How many 32446 terminals are included in one pack?

One pack of 32446 terminals contains 50 pieces supplied as loose pieces.

05. What compliance and classification information is associated with the 32446 terminal?

The 32446 terminal is RoHS compliant, ELV compliant, has ECCN 9A991.d, Schedule B code 8536.90.4000, and national stock number 5940-00-236-1573.
