Product Description

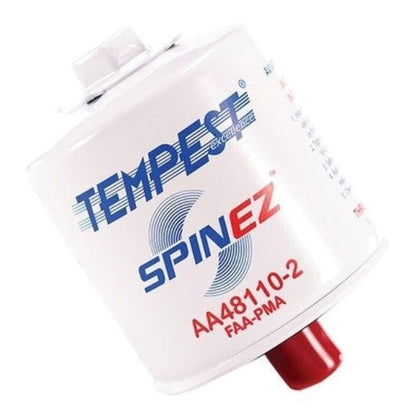

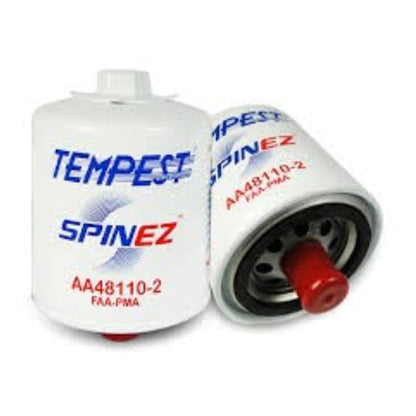

AA48110-2 is a spin-on aviation engine oil filter designed to provide engine oil filtration with a Spin-EZ solid seal lubricant system that promotes a secure seal between the rubber gasket and the filter mount pad in aircraft piston engine installations.

0 1. Overview

This filter incorporates a Spin-EZ adhered solid seal lubricant at the gasket interface so that the lubricant remains between the seal and the mounting pad to reduce the bond-forming conditions that can develop under heat, time, and pressure. The Spin-EZ design supports removal at filter change without the need for additional external gasket compounds.

The housing uses a full can thickness of 0.019 in and a base plate thickness of 0.187 in, supporting structural integrity in service. The filter element for the AA48110-2 configuration provides 311 square inches of media area, grouped with other filters in the same -2 family. Burst pressure is rated at 700 psi, and the design follows product specifications developed for piston aircraft engine lubrication systems.

Overall nominal dimensions are 4 3/8 in height by 3 3/4 in diameter, with a 3/4-16 male thread connection and a specified installation torque of 16–18 ft·lb. The filter is identified as an OEM-supplier product for certain engine applications and is listed for use on selected Beechcraft, Cessna, and Mooney models in appropriate engine and airframe combinations.

0 2. Key Features

  • Spin-EZ solid seal lubricant at the gasket interface
  • Spin-on aviation engine oil filter design
  • Filter media area of 311 square inches for the AA48110-2 configuration
  • Full can wall thickness of 0.019 in
  • Base plate thickness of 0.187 in
  • Burst pressure rating of 700 psi
  • 3/4-16 male thread oil filter connection
  • Nominal dimensions of 4 3/8 in height by 3 3/4 in diameter
  • Installation torque range of 16–18 ft·lb
  • Identified as an OEM supplier filter for specific engine applications
0 3. Specifications

Manufacturer model: AA48110-2
Filter type: Spin-on aircraft engine oil filter with Spin-EZ seal system
Media area: 311 sq in for -2 series filters (includes AA48110-2)
Full can thickness: 0.019 in
Base plate thickness: 0.187 in
Burst pressure: 700 psi
Overall nominal dimensions: 4 3/8 in height × 3 3/4 in diameter

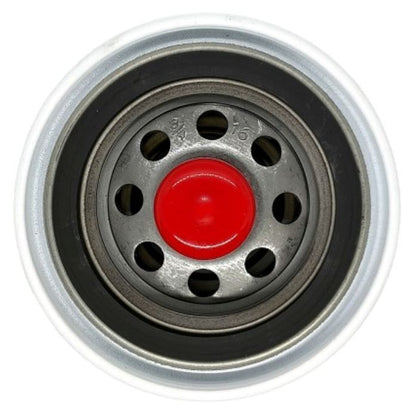

Thread size and type: 3/4-16 male thread
Installation torque: 16–18 ft·lb
Application notes: Used in piston aircraft engines and listed for selected Beechcraft, Cessna, and Mooney models
Related designation: Cross-referenced in some listings with CH48110-1

FAQs

01. What are the thread size and installation torque for the AA48110-2 oil filter?

The AA48110-2 oil filter uses a 3/4-16 male thread and has a specified installation torque of 16–18 ft·lb.

02. What burst pressure rating is specified for the AA48110-2 Spin-EZ oil filter?

The AA48110-2 Spin-EZ oil filter has a burst pressure rating of 700 psi.

03. What are the nominal dimensions of the AA48110-2 oil filter?

The AA48110-2 oil filter has nominal overall dimensions of 4 3/8 inches in height by 3 3/4 inches in diameter.

04. How much filter media area does the AA48110-2 provide?

The AA48110-2 is in the -2 filter family with a media size of 311 square inches.

05. What sealing feature distinguishes the AA48110-2 Spin-EZ oil filter?

The AA48110-2 Spin-EZ oil filter uses an adhered solid seal lubricant at the gasket interface designed to remain between the seal and the mount pad surface.
