Product Description

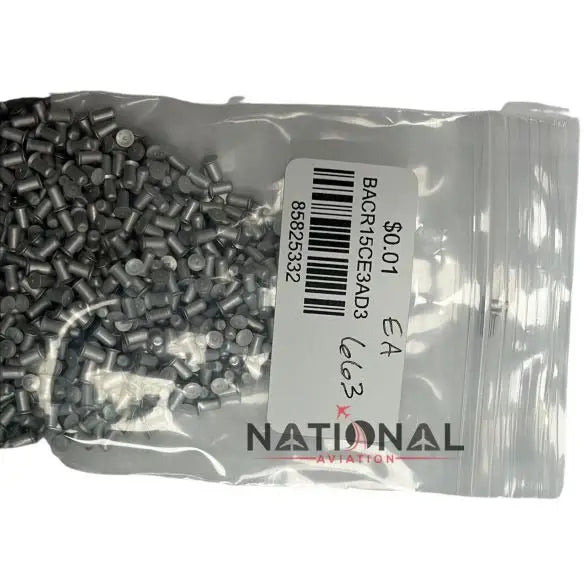

BACR15CE3AD3 is an aerospace-grade solid rivet used as a permanent fastener in aircraft structures. It serves to secure sheet metal and structural members in aviation assemblies where a driven solid fastener is specified. The rivet functions as a non-removable joint element in areas subject to vibration and structural loading in airframe construction and maintenance work.

0 1. Overview

BACR15CE3AD3 is part of the BACR15CE rivet series, which uses a 100 degree countersunk head form for flush installation in prepared countersunk holes. The part number format defines the nominal shank diameter with the β€œ3” designation and uses additional characters to distinguish grip or length increments within the family. The rivet uses a solid shank configuration that is set by deformation during installation with standard aircraft riveting tools.

The BACR15CE series follows established aerospace fastener dimensional and performance requirements for structural applications. The 100 degree countersunk head geometry aligns with standard aircraft countersink tooling, allowing the installed head to sit level with the surrounding surface. BACR15CE3AD3 is selected where engineering drawings call for this specific BACR15CE size and configuration in metallic aircraft structure.

0 2. Key Features

  • Member of the BACR15CE series of aerospace solid rivets
  • 100 degree countersunk head geometry for flush installation
  • Solid shank design set by deformation during driving
  • Nominal shank diameter identified by the β€œ3” size code in the part number
  • Configured for use in prepared countersunk holes in metallic aircraft structure
0 3. Specifications

Part Number: BACR15CE3AD3
Series: BACR15CE
Head Style: 100Β° countersunk
Fastener Type: Solid rivet
Shank Style: Solid, driven type
Size Designator: 3 (nominal shank diameter)

FAQs

01. What family of rivets does BACR15CE3AD3 belong to?

BACR15CE3AD3 belongs to the BACR15CE series of aerospace solid rivets.

02. What head angle is used on the BACR15CE3AD3 rivet?

BACR15CE3AD3 uses a 100 degree countersunk head angle.

03. How is the BACR15CE3AD3 rivet set in place?

The BACR15CE3AD3 rivet is set by driving the solid shank with suitable riveting equipment.

04. What does the β€œ3” in the BACR15CE3AD3 part number represent?

The β€œ3” in the BACR15CE3AD3 part number identifies the nominal shank diameter for this BACR15CE rivet.
