Product Description

This part is a miniature incandescent lamp used as a low-voltage light source in applications that accept an S8 bulb with a single-contact bayonet base and compatible electrical ratings.

0 1. Overview

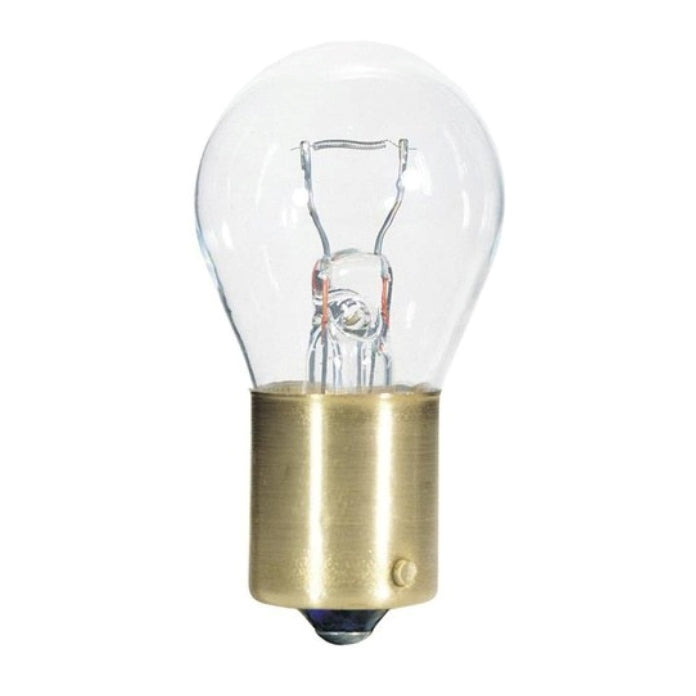

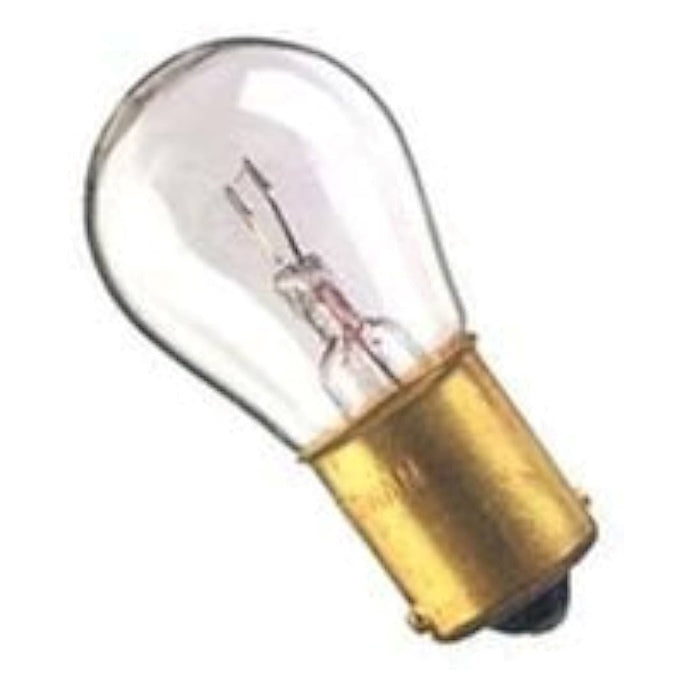

The lamp uses a BA15s single-contact bayonet base with a clear envelope and an S8 bulb shape. It is rated 13 W at 12.8 VAC with a current draw of 1.04 A and produces 190 lumens. The light source uses a C-6 filament and has an average rated life of 700 hr. The lamp holds SAE certification and is specified to relevant ANSI standards. Overall dimensions are 1.04 in diameter and 2 in length. The construction is an incandescent design intended for use at 12.8 VAC in circuits designed for this wattage and current level.

0 2. Key Features

  • Miniature incandescent construction
  • BA15s single-contact bayonet base
  • S8 bulb shape
  • Clear lamp finish
  • Rated 13 W at 12.8 VAC
  • Approximate luminous output of 190 lumens
  • C-6 filament design
  • Average rated life of 700 hr
  • SAE certified and ANSI specified
  • Overall dimensions 1.04 in diameter by 2 in length
0 3. Specifications

Part Number: 93
Lamp Type: Incandescent miniature
Base Type: BA15s single-contact bayonet
Bulb Shape: S8
Finish: Clear
Wattage: 13 W
Voltage Rating: 12.8 VAC
Current Rating: 1.04 A
Luminous Flux: 190 lumens
Filament Type: C-6
Average Life: 700 hr
Overall Diameter: 1.04 in
Overall Length: 2 in
Standards and Approvals: SAE certified, ANSI specified

FAQs

01. What base type does the 93 lamp use?

The 93 lamp uses a BA15s single-contact bayonet base.

02. What are the electrical ratings of the 93 miniature lamp?

The 93 lamp is rated 13 W at 12.8 VAC with a current draw of 1.04 A.

03. How much light output does the 93 lamp provide?

The 93 lamp provides a luminous flux of 190 lumens.

04. What are the physical dimensions of the 93 bulb?

The 93 bulb has an overall diameter of 1.04 in and an overall length of 2 in.

05. What standards apply to the 93 miniature lamp?

The 93 miniature lamp is SAE certified and ANSI specified.
