In stock

4580

Name: 4580
Brand: GE Lighting
SKU: NAT-MFD6UV1M
Price: 22.00 USD
Availability: InStock

by GE Lighting

The filament configuration of the 4580 sealed-beam lamp is CC-8.

$22.00

Shipping calculated at checkout.

Product variants

Ready to Ship

190 in stock - $22.00

Ships within 48 hours

Loading availability...

Pickup available at National Aviation, Inc.

Usually ready in 1 hour

Free Shipping for orders over $350

Free standard shipping on all orders over $350 to the United States and Canada. Expedited shipping options are available at checkout for an additional cost.

Orders under $350 will show applicable shipping costs during checkout. Most orders ship within 1-2 business days.

We offer refund, return, and exchange options within 30 days of your purchase for eligible items. Products must be unused and in original packaging. We do not accept refund, return, or exchange requests after 30 days.

For complete details, visit our Shipping Policy and Returns & Refunds Policy.

FAA Approved

Our aviation parts and pilot gear meet FAA standards, giving you confidence and reliability in every flight.

Secure payments

Shop with confidence using our secure, encrypted checkout to protect your personal and payment information.

Fast Order Processing

Orders are processed the same business day, ensuring your parts and pilot gear reach you without delay.

4580

$22.00

Product Description

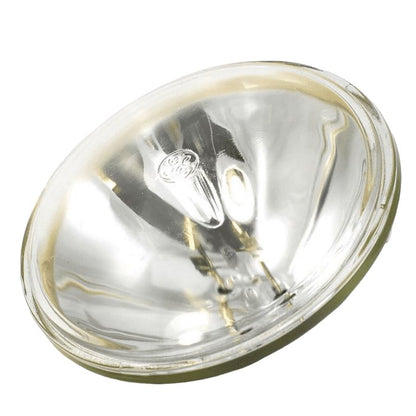

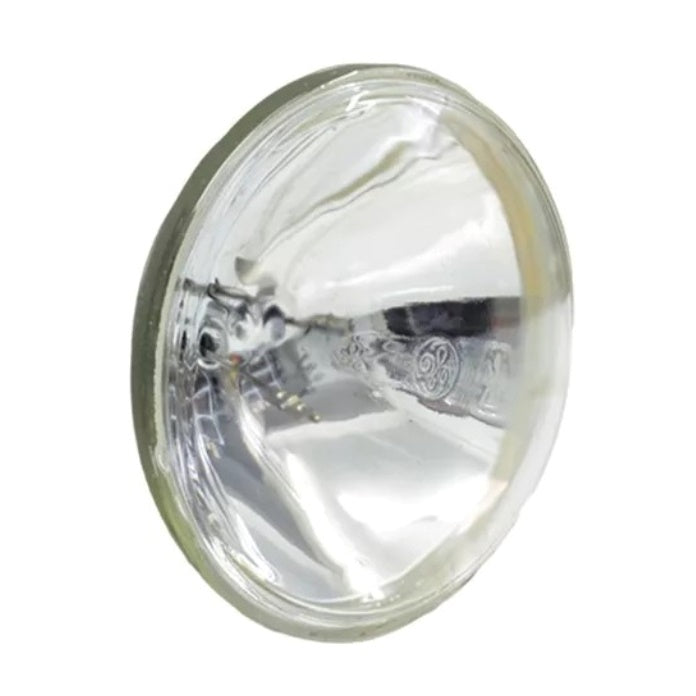

This incandescent sealed-beam lamp is a 28-volt, 450-watt PAR46 unit used as an aircraft landing light in aviation applications.

0 1. Overview

This lamp uses a PAR46 sealed-beam construction with a clear envelope and CC-8 filament. It has a nominal diameter of 5.75 inches and a maximum overall length of 3.75 inches. The design incorporates a pin/plug-in screw terminal base for electrical connection. The lamp is specified for 28-volt operation and is classified as an incandescent sealed-beam type. Product information identifies it under manufacturer part numbers GE-4580 and 4580, with additional cross-reference to OL-4580. It is associated with an import classification of EAR99 and a Schedule B code of 9405.40.0000. One listing associates the lamp with NSN 6240-00-283-9901 and a clear color family. Packaging information indicates a pack quantity of one unit.

0 2. Key Features

PAR46 sealed-beam construction
28-volt operating voltage
450-watt power rating
Incandescent lamp type
CC-8 filament design
Pin/plug-in screw terminal base
Approximate 5.75 inch diameter
Maximum overall length of 3.75 inches
Clear lamp color

0 3. Specifications

Part Number: 4580
Alternate Part Numbers: GE-4580, OL-4580
Lamp Type: Incandescent sealed-beam
Shape: PAR46
Voltage Rating: 28 V
Wattage: 450 W
Filament: CC-8
Base Type: Pin/Plug-in screw terminals
Diameter: 5.75 in
Maximum Overall Length (MOL): 3.75 in
Color: Clear
NSN: 6240-00-283-9901
Country of Origin: United States
ECCN: EAR99
Schedule B Code: 9405.40.0000
Pack Quantity: 1

FAQs

01. What type of base does the 4580 lamp use?

The 4580 lamp uses a pin/plug-in screw terminal base.

02. What is the filament configuration of the 4580 sealed-beam lamp?

The filament configuration of the 4580 sealed-beam lamp is CC-8.

03. What is the nominal diameter of the 4580 PAR46 lamp?

The nominal diameter of the 4580 PAR46 lamp is 5.75 inches.

04. Which voltage is the 4580 aircraft landing light designed for?

The 4580 aircraft landing light is designed for 28-volt operation.

05. What is the NSN associated with the 4580 lamp?

The NSN associated with the 4580 lamp is 6240-00-283-9901.
