Hurry, only 2 items left in stock!

4553

Name: 4553
Brand: GE Lighting
SKU: NAT-2AJHEDPC
Price: 19.00 USD
Availability: InStock

by GE Lighting

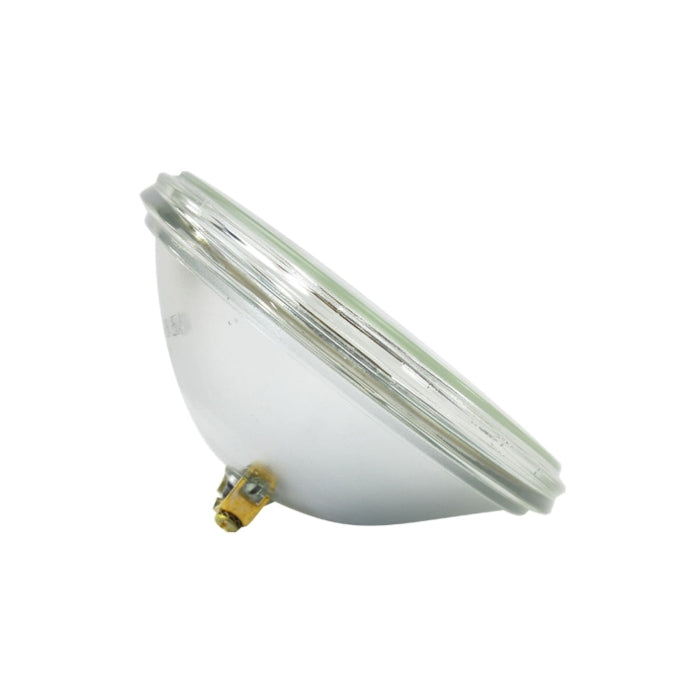

The 4553 lamp uses a PAR46 sealed-beam construction with an incandescent CC-8 filament and screw terminal base.

$19.00

Shipping calculated at checkout.

Product variants

Ready to Ship

2 in stock - $19.00

Ships within 48 hours

Loading availability...

Pickup available at National Aviation, Inc.

Usually ready in 1 hour

Free Shipping for orders over $350

Free standard shipping on all orders over $350 to the United States and Canada. Expedited shipping options are available at checkout for an additional cost.

Orders under $350 will show applicable shipping costs during checkout. Most orders ship within 1-2 business days.

We offer refund, return, and exchange options within 30 days of your purchase for eligible items. Products must be unused and in original packaging. We do not accept refund, return, or exchange requests after 30 days.

For complete details, visit our Shipping Policy and Returns & Refunds Policy.

FAA Approved

Our aviation parts and pilot gear meet FAA standards, giving you confidence and reliability in every flight.

Secure payments

Shop with confidence using our secure, encrypted checkout to protect your personal and payment information.

Fast Order Processing

Orders are processed the same business day, ensuring your parts and pilot gear reach you without delay.

4553

$19.00

Product Description

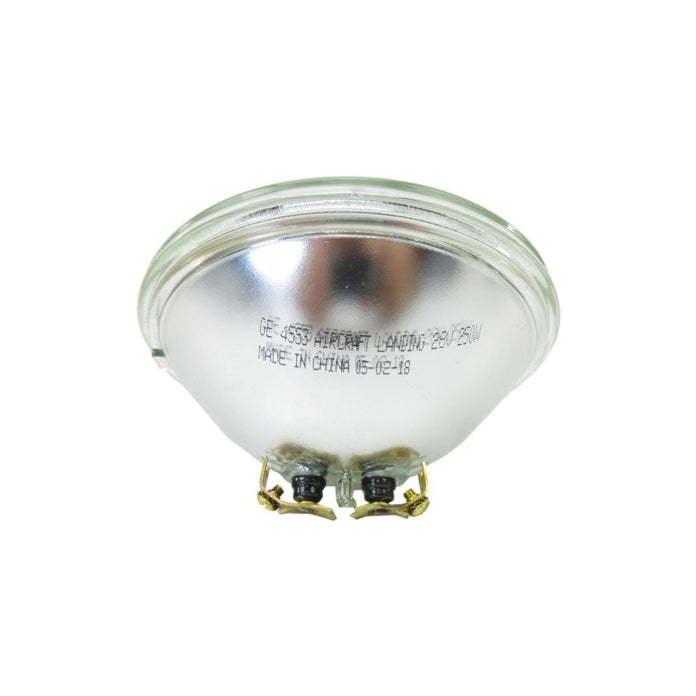

This is a PAR46 sealed-beam incandescent aircraft lamp with a 28‑volt, 250‑watt rating, used as a landing light in aviation applications.

0 1. Overview

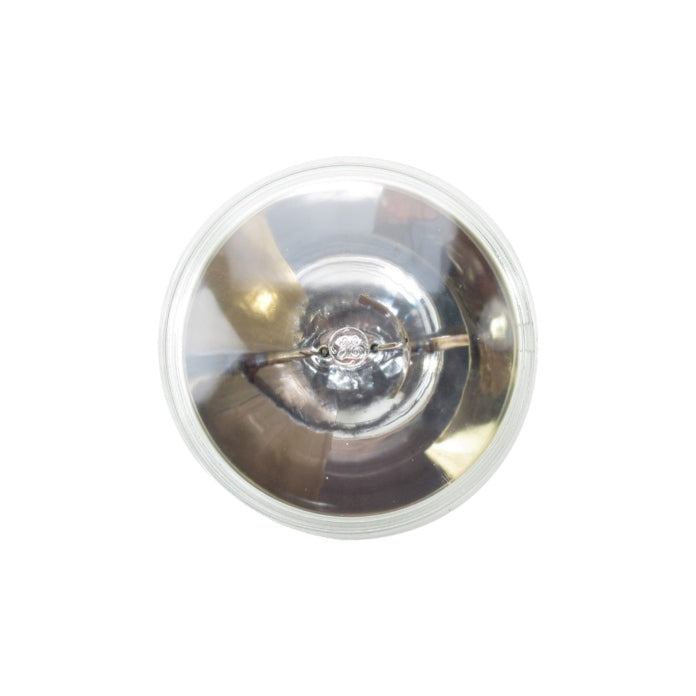

The 4553 lamp uses sealed-beam PAR technology with an incandescent CC-8 filament and a clear lens. It is built with screw terminal base connections and a bulb diameter of approximately 5.75 inches. Maximum overall length is about 3.13 inches. The lamp’s design provides a narrow beam spread of about 11 degrees horizontally and 12 degrees vertically at the stated cutoff, with a maximum beam candlepower of 300,000. The lamp carries an ANSI code of 4553 and a product code of 24799. A referenced MIL specification designation for this configuration is MS25241-4553. The lamp has a rated life of 25 hours under its specified operating conditions. It is produced as a sealed-beam PAR46 unit in a clear color family and is designated for aircraft service. Export and trade data for this item include an ECCN classification of EAR99 and a Schedule B code of 9405.40.0000 in one listing and 8539100020 in another. Country of origin is stated as the United States for one manufacturer’s variant.

0 2. Key Features

PAR46 sealed-beam incandescent aircraft lamp
Rated for 28 volts and 250 watts
Sealed-beam PAR construction with clear lens

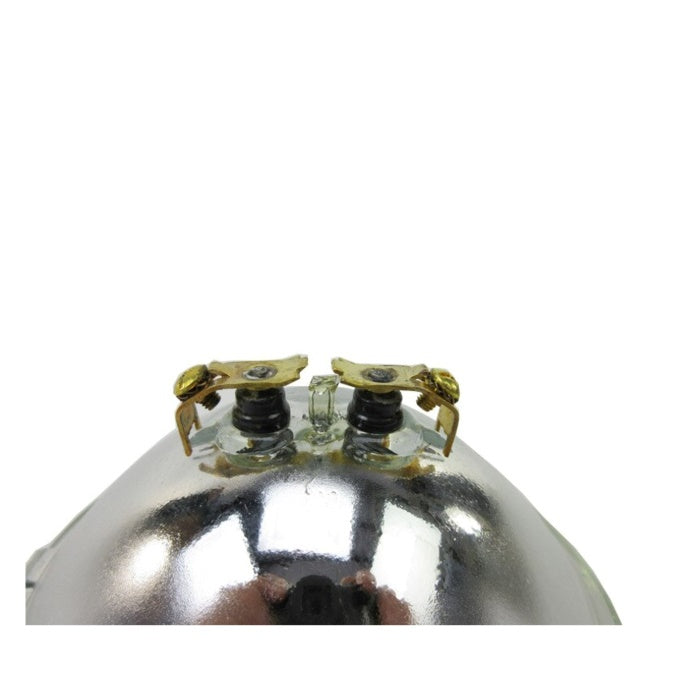

Screw terminal base configuration
CC-8 filament design
Lamp diameter approximately 5.75 inches
Maximum overall length approximately 3.13 inches
Horizontal beam spread about 11 degrees at 10 percent intensity
Vertical beam spread about 12 degrees at 10 percent intensity
Maximum beam candlepower rated at 300,000
ANSI code designation 4553
MIL specification reference MS25241-4553
Rated life of 25 hours under specified conditions
ECCN classification EAR99
Schedule B codes referenced as 9405.40.0000 and 8539100020
Country of origin stated as United States for at least one variant

0 3. Specifications

Part Number: 4553
Alternate Part Numbers: GE-4553, GE4553, GE 4553, 24799, 11-03799
Lamp Type: Sealed beam PAR incandescent
Bulb Size: PAR46
Voltage Rating: 28 V
Wattage: 250 W
Filament Type: CC-8
Base Type: Screw terminals
Color: Clear
Primary Application: Aircraft landing light
ANSI Code: 4553
MIL Specification: MS25241-4553
Maximum Beam Candlepower: 300,000
Beam Spread Horizontal: 11° at 10% intensity
Beam Spread Vertical: 12° at 10% intensity
Rated Life: 25 hours
Maximum Overall Length: 3.1300 in (79.5 mm)
Bulb Diameter: 5.750 in (146.0 mm)
Country of Origin: United States (for at least one manufacturer’s version)
ECCN: EAR99
Schedule B Code: 9405.40.0000; 8539100020

FAQs

01. What are the electrical ratings for the 4553 aircraft lamp?

The 4553 aircraft lamp is rated for 28 volts and 250 watts.

02. What bulb size and construction does the 4553 lamp use?

The 4553 lamp uses a PAR46 sealed-beam construction with an incandescent CC-8 filament and screw terminal base.

03. What are the beam characteristics of the 4553 landing light?

The 4553 landing light has an approximate horizontal beam spread of 11 degrees, a vertical beam spread of 12 degrees at 10 percent intensity, and a maximum beam candlepower of 300,000.

04. What are the physical dimensions of the 4553 lamp?

The 4553 lamp has a bulb diameter of about 5.75 inches and a maximum overall length of about 3.13 inches.

05. Which specifications and classifications apply to the 4553 lamp?

The 4553 lamp carries ANSI code 4553, references MIL specification MS25241-4553, and has an ECCN of EAR99 with Schedule B codes 9405.40.0000 and 8539100020 in available documentation.
