4505

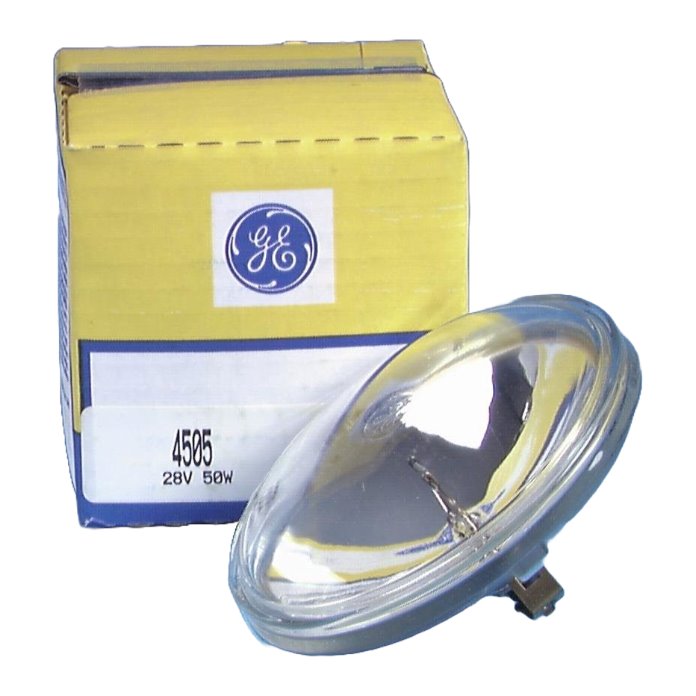

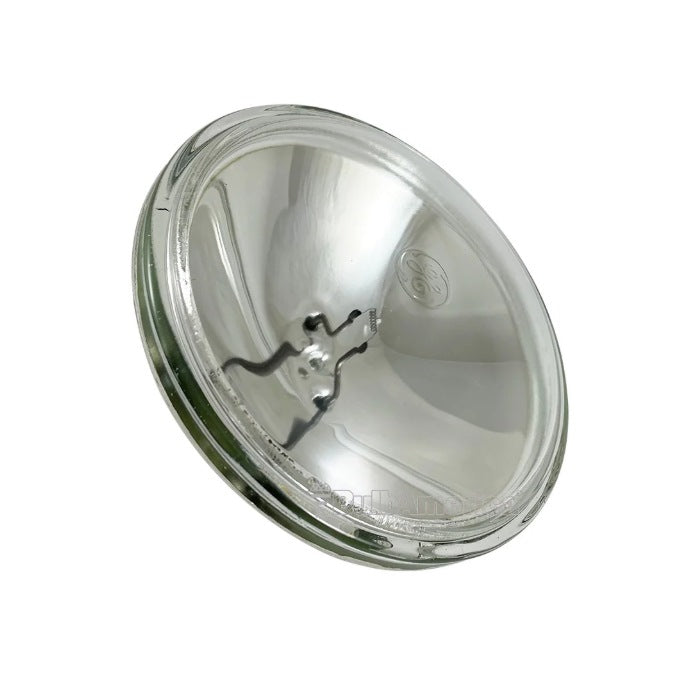

This 4505 lamp uses incandescent product technology with a C-6 filament and a clear beam pattern. The electrical rating is 28 volts with a power consumption of 50 watts, and the primary application is identified as aircraft use. The construction features a sealed-beam PAR design with a screw terminal base, a maximum overall length of 2.7500 inches, and a bulb diameter of 4.500 inches. Beam spread is specified as 11 degrees horizontal at the 10 percent level and 5 degrees vertical at the 10 percent level, with a maximum beam candlepower of 45,000. The lamp has a rated life of 400 hours. Classification data include MIL-SPEC designation MS25243-4505, export control classification EAR99, and Schedule B code 9405.40.0000. The lamp is supplied as a single unit with a pack quantity of one and is identified with product code 24640 and ANSI code 4505.

• Sealed-beam PAR design with incandescent product technology
• Rated at 28 volts and 50 watts for aircraft applications
• Equipped with a C-6 filament and clear beam pattern
• Provides a maximum beam candlepower of 45,000
• Horizontal beam spread of 11 degrees and vertical beam spread of 5 degrees at the 10 percent level
• Screw terminal base for electrical connection
• Rated service life of 400 hours
• Packaged with a pack quantity of one lamp

Part number: 4505
Alternate part numbers: GE-4505, GE4505, 24640
ANSI code: 4505
MIL-SPEC: MS25243-4505
Lamp type: Sealed beam PAR
Bulb designation: PAR36
Product technology: Incandescent
Filament type: C-6
Voltage rating: 28 V
Wattage: 50 W
Beam spread, horizontal: 11° at 10%
Beam spread, vertical: 5° at 10%
Maximum beam candlepower: 45,000
Maximum overall length (MOL): 2.7500 in (69.8 mm)
Bulb diameter: 4.500 in (114.3 mm)
Base type: Screw terminals
Rated life: 400 hr
Color: Clear
Color family: Clear
Primary application: Aircraft
ECCN: EAR99
Schedule B code: 9405.40.0000
Pack quantity: 1
Country of origin: United States
