Product Description

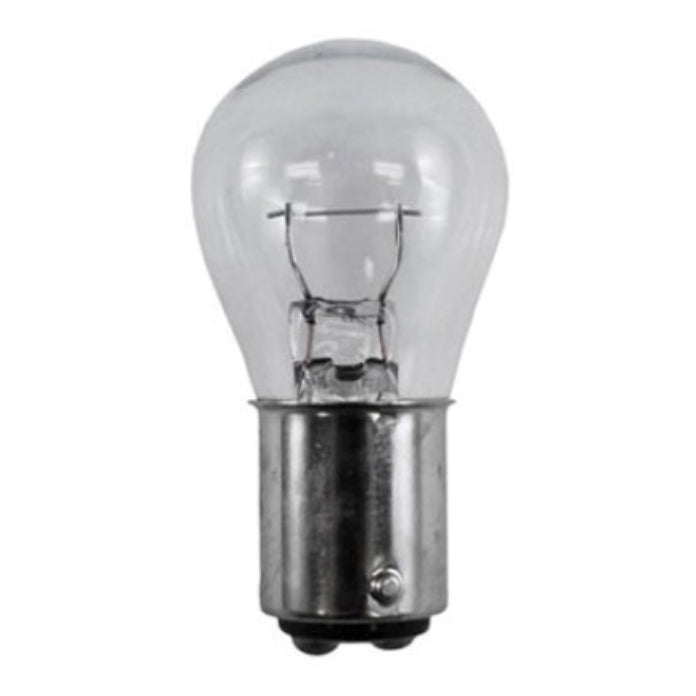

This unit is a miniature incandescent aircraft lamp for 28-volt lighting circuits, intended for use in applications such as cockpit, wing, and tail illumination where a compact S8 envelope and double-contact bayonet base are required.

0 1. Overview

The lamp uses an S8 straight-side bulb with a transparent envelope and a double contact bayonet candelabra base. It operates at a nominal voltage rating of 28 volts with a wattage rating of 17.080 watts and a current rating of 0.610 amperes. The filament is designated 2C-2R and supports a light output rating of 15 spherical candlepower at a nominal single rating.

The construction supports an overall maximum length of 2.000 inches with a nominal light center length of 1.130 inches and a bulb diameter of approximately 1.04 inches. The design supports operation in any burning position. The emitted light is colorless and the bulb light transmission characteristic is transparent.

The lamp carries an average life rating of 1000 hours. It is associated with military and industry references including MIL specification W-L-00111/53 and specification or standard data 08108-1692. Alternate reference numbers include 456602 and MS15584-8. The country of origin is the United States, and classification data include ECCN 9A991.d and Schedule B code 9405.40.0000. It is provided in packaging with a pack quantity of ten units.

0 2. Key Features

  • Incandescent miniature aircraft lamp with S8 straight-side bulb
  • Nominal 28 volt operating rating with 17.080 watt power consumption
  • Double contact bayonet candelabra base configuration
  • Filament design 2C-2R providing 15 spherical candlepower nominal light output
  • Average life rating of 1000 hours
  • Transparent, colorless bulb for clear light transmission
  • Maximum overall length of 2.000 inches and nominal light center length of 1.130 inches
  • Rated for operation in any burning position
  • Associated with MIL specification W-L-00111/53 and standard data 08108-1692
  • Includes alternate part references 456602 and MS15584-8
  • Packaged with a pack quantity of ten lamps
  • Country of origin identified as United States with ECCN 9A991.d and Schedule B 9405.40.0000
0 3. Specifications

Manufacturer Part Number: GE-1692
Alternate Part Numbers: 456602, MS15584-8
Bulb Shape: S8 straight-side
Lamp Type: Incandescent
Base Style: Double contact bayonet candelabra
Filament Designation: 2C-2R
Voltage Rating: 28 V nominal
Wattage Rating: 17.080 W
Current Rating: 0.610 A nominal
Light Output: 15 spherical candlepower nominal single rating
Emitted Light Characteristic: Colorless
Bulb Light Transmission: Transparent
Maximum Overall Length: 2.000 in
Light Center Length: 1.130 in nominal
Diameter: 1.04 in
Average Life Rating: 1000 hr
Burning Position: Any acceptable
Military Specification: W-L-00111/53
Specification/Standard Data: 08108-1692
Country of Origin: United States
ECCN: 9A991.d
Schedule B Code: 9405.40.0000
Pack Quantity: 10

FAQs

01. What is the operating voltage and power rating of the 1692 miniature aircraft lamp?

The 1692 miniature aircraft lamp has a nominal operating voltage rating of 28 volts and a wattage rating of 17.080 watts.

02. What base type does the 1692 lamp use for installation?

The 1692 lamp uses a double contact bayonet candelabra base for installation.

03. What is the average service life of the 1692 lamp?

The 1692 lamp has an average life rating of 1000 hours.

04. What are the key dimensions of the 1692 lamp envelope?

The 1692 lamp has a maximum overall length of 2.000 inches, a nominal light center length of 1.130 inches, and a bulb diameter of approximately 1.04 inches.

05. Which military and standard specifications are associated with the 1692 lamp?

The 1692 lamp is associated with MIL specification W-L-00111/53 and specification or standard data 08108-1692, with alternate references 456602 and MS15584-8.
