Product Description

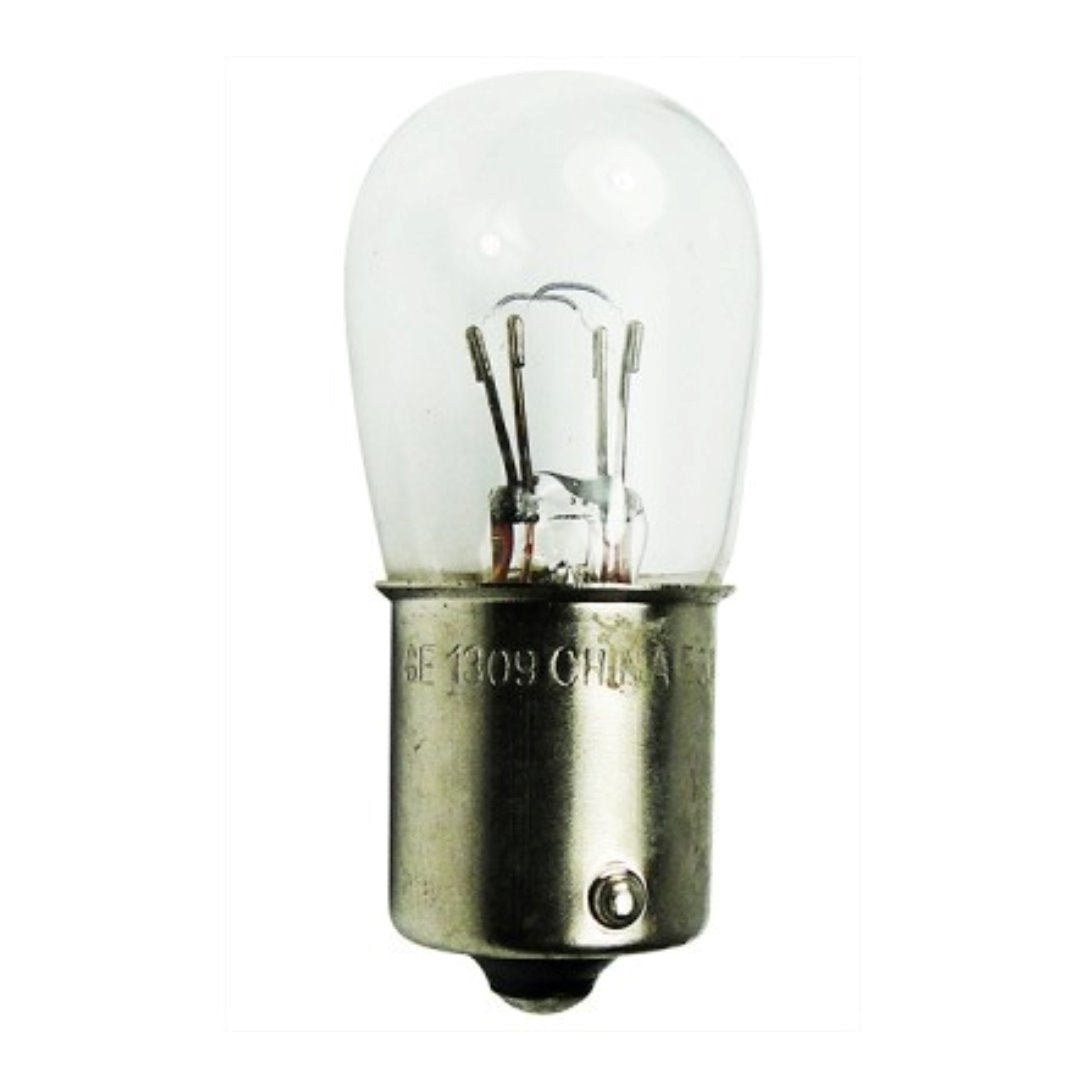

Miniature incandescent aircraft lamp for 28 volt systems used in interior lighting circuits.

0 1. Overview

This lamp is rated at 14.56 watts and operates on a 28 volt supply. It has a pin or plug-in style base with a single contact bayonet configuration. The bulb is constructed from lead glass and contains a gas-filled atmosphere. The filament design is 2C-2R, and the rated service life is 300 hours under nominal operating conditions. The lamp is identified with alternate part number GE-1309 and is supplied in packaged quantities depending on the specific variant.

0 2. Key Features

  • 28 V operating voltage
  • 14.56 W power rating
  • Pin or plug-in base configuration
  • Single contact bayonet base style
  • Lead glass bulb construction
  • Gas-filled atmosphere
  • 2C-2R filament design
  • Rated life of 300 hours
  • Alternate part number GE-1309
0 3. Specifications

Part Number: 1309
Alternate Part Number: GE-1309
Lamp Type: Incandescent
Operating Voltage: 28 V
Power Rating: 14.56 W
Base Type: Pin/plug-in
Base Description: Single contact bayonet
Bulb Material: Lead glass
Atmosphere: Gas-filled
Filament Type: 2C-2R
Rated Life: 300 hours

FAQs

01. What is the operating voltage of the 1309 aircraft lamp?

The 1309 aircraft lamp operates at 28 volts.

02. What is the power rating of the 1309 lamp?

The 1309 lamp has a power rating of 14.56 watts.

03. What base type does the 1309 lamp use?

The 1309 lamp uses a pin or plug-in base with a single contact bayonet configuration.

04. What is the rated service life of the 1309 lamp?

The rated service life of the 1309 lamp is 300 hours.

05. What is the filament design used in the 1309 aircraft lamp?

The 1309 aircraft lamp uses a 2C-2R filament design.
