FTA-550L

Name: FTA-550L
Brand: YEASU
SKU: NAT-FTA-550L
Price: 365.24 USD
Availability: InStock

by YEASU

The FTA-550L provides 5 watts P.E.P. transmit power in airband AM mode with a 1.5 watt carrier level.

$365.24

Shipping calculated at checkout.

Product variants

Ready to Ship

1 in stock - $365.24

Ships within 48 hours

Loading availability...

Pickup available at National Aviation, Inc.

Usually ready in 1 hour

Free Shipping for orders over $350

Free standard shipping on all orders over $350 to the United States and Canada. Expedited shipping options are available at checkout for an additional cost.

Orders under $350 will show applicable shipping costs during checkout. Most orders ship within 1-2 business days.

We offer refund, return, and exchange options within 30 days of your purchase for eligible items. Products must be unused and in original packaging. We do not accept refund, return, or exchange requests after 30 days.

For complete details, visit our Shipping Policy and Returns & Refunds Policy.

FAA Approved

Our aviation parts and pilot gear meet FAA standards, giving you confidence and reliability in every flight.

Secure payments

Shop with confidence using our secure, encrypted checkout to protect your personal and payment information.

Fast Order Processing

Orders are processed the same business day, ensuring your parts and pilot gear reach you without delay.

FTA-550L

$365.24

Product Description

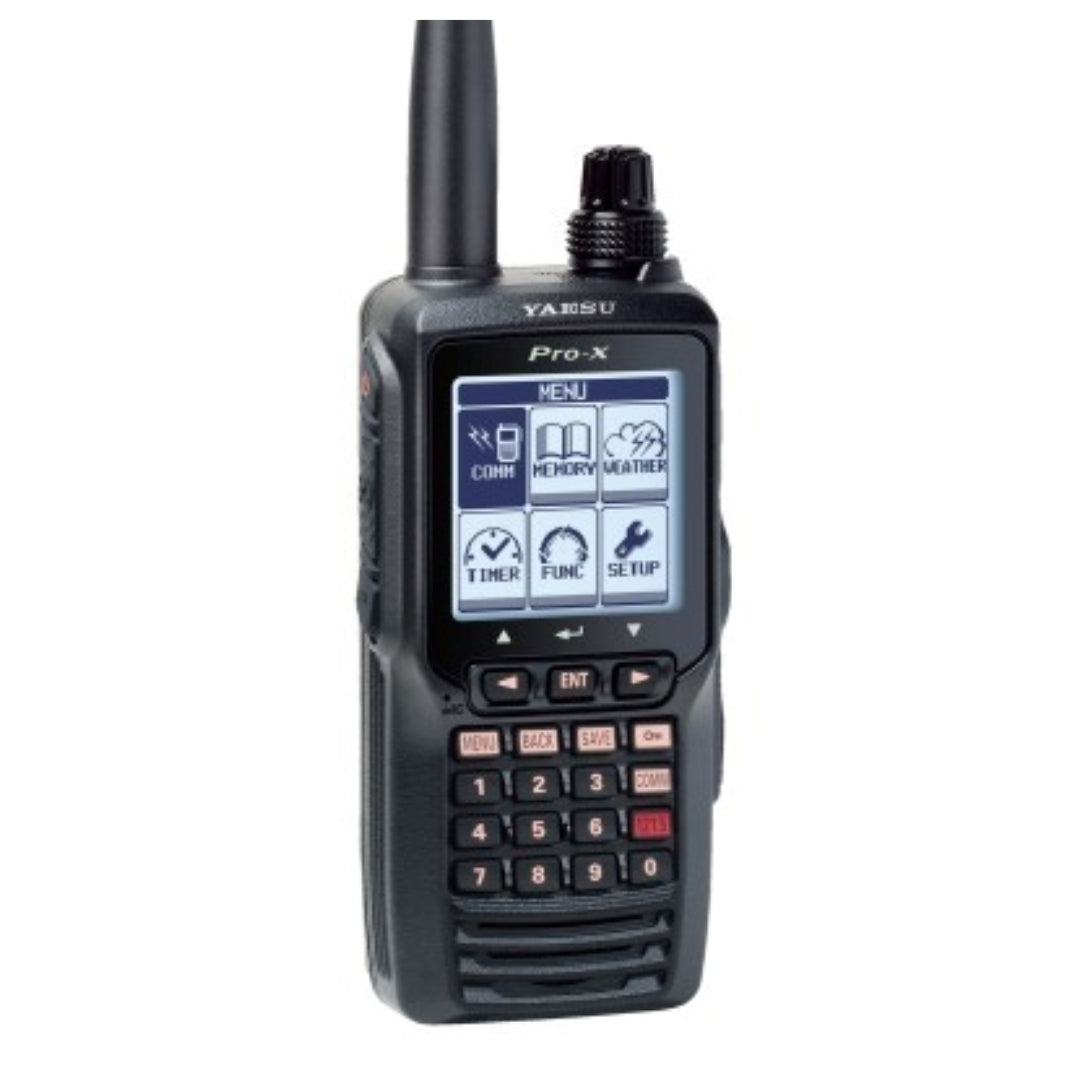

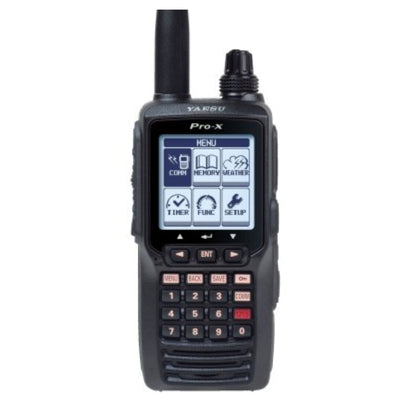

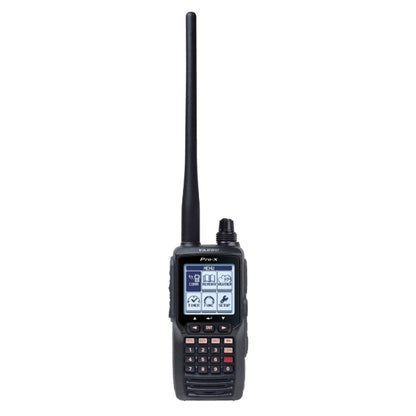

This unit is a VHF airband handheld transceiver that provides voice communications and navigation functions for pilots and ground personnel. It supports standard aviation voice channels and delivers clear airband communication in both 25 kHz and 8.33 kHz channel spacing formats for use in general aviation and related flight operations.

0 1. Overview

The transceiver incorporates an oversize 1.7 by 1.7 inch full dot matrix LCD with 160 by 160 dot resolution, full backlight, and a dimmer function to maintain display readability in a wide range of lighting conditions. It is powered by a lithium-ion battery pack and is supplied with an AC charger, charger cradle, cigarette lighter DC converter, helical antenna, belt clip, headset adapter cable, alkaline battery tray, USB programming cable, and ferrite core. The housing meets an IPX5 water protection rating and is tested to the MIL-STD-810F environmental standard for resistance to low and high temperature, shock, vibration, dust, and rain.

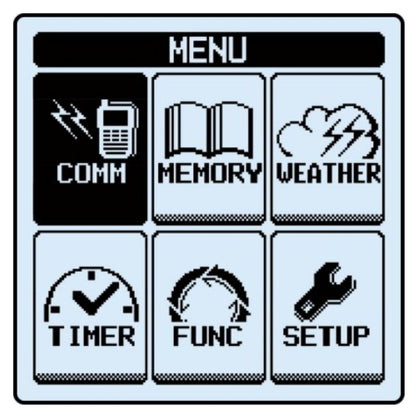

The radio provides 5 watts TX output power in airband AM operation with 5 W P.E.P. and 1.5 W carrier. It includes ILS navigation display capability, VOR navigation display with automatic screen switching to a CDI-style NAV display when a VOR signal is received, and reception of NOAA weather channels with weather alert functions. Up to 200 memory channels are available, each with up to 15 alphanumeric characters for channel naming to support organized frequency management. Backlit keypad illumination with adjustable dimmer supports operation in low light environments, while an 800 mW audio output provides high audio level in noisy conditions. An icon-driven, menu-based user interface enables configuration and use of the transceiver functions, and the supplied USB cable allows reprogramming with optional PC software.

0 2. Key Features

Handheld VHF airband transceiver with communication and navigation functions
Supports both 25 kHz and 8.33 kHz channel spacing
Provides 5 W TX output power in airband AM with 5 W P.E.P. and 1.5 W carrier
Equipped with a 1.7 inch by 1.7 inch full dot matrix LCD display at 160 by 160 dots
Includes VOR and ILS navigation display functions
Provides NOAA weather channel receive and weather alert capability
Stores up to 200 memory channels with up to 15-character alphanumeric labels
Backlit keypad and display with adjustable dimmer
IPX5 water protection rating
Meets MIL-STD-810F environmental standard for temperature, shock, vibration, dust, and rain resistance
Audio output rated at 800 mW for high-volume operation
Supplied with lithium-ion battery pack, AC charger, charger cradle, and cigarette lighter DC converter
Supplied with helical antenna, belt clip, headset adapter cable, alkaline battery tray, USB cable, and ferrite core

0 3. Specifications

Part number: FTA-550L
Channel spacing: 25 kHz and 8.33 kHz
Transmit power: 5 W P.E.P., 1.5 W carrier (airband AM)
Display type: full dot matrix LCD
Display size: 1.7 in × 1.7 in
Display resolution: 160 × 160 dots
Memory channels: 200 with up to 15 alphanumeric characters per channel
Audio output: 800 mW
Water protection rating: IPX5
Environmental standard: MIL-STD-810F
Included power source: lithium-ion battery pack
Included accessories: AC charger, charger cradle, cigarette lighter DC converter, helical antenna, belt clip, headset adapter cable, alkaline battery tray, USB cable, ferrite core

FAQs

01. What channel spacing options does the FTA-550L support for airband communication?

The FTA-550L supports both 25 kHz and 8.33 kHz channel spacing for airband communication.

02. What is the transmit power rating of the FTA-550L in airband AM mode?

The FTA-550L provides 5 watts P.E.P. transmit power in airband AM mode with a 1.5 watt carrier level.

03. How many memory channels are available on the FTA-550L and how can they be labeled?

The FTA-550L offers 200 memory channels, each of which can be labeled with up to 15 alphanumeric characters.

04. What environmental and water protection standards does the FTA-550L meet?

The FTA-550L meets the MIL-STD-810F environmental standard and carries an IPX5 water protection rating.

05. Which accessories are included with the FTA-550L handheld transceiver?

The FTA-550L includes a lithium-ion battery pack, AC charger, charger cradle, cigarette lighter DC converter, helical antenna, belt clip, headset adapter cable, alkaline battery tray, USB cable, and ferrite core.
